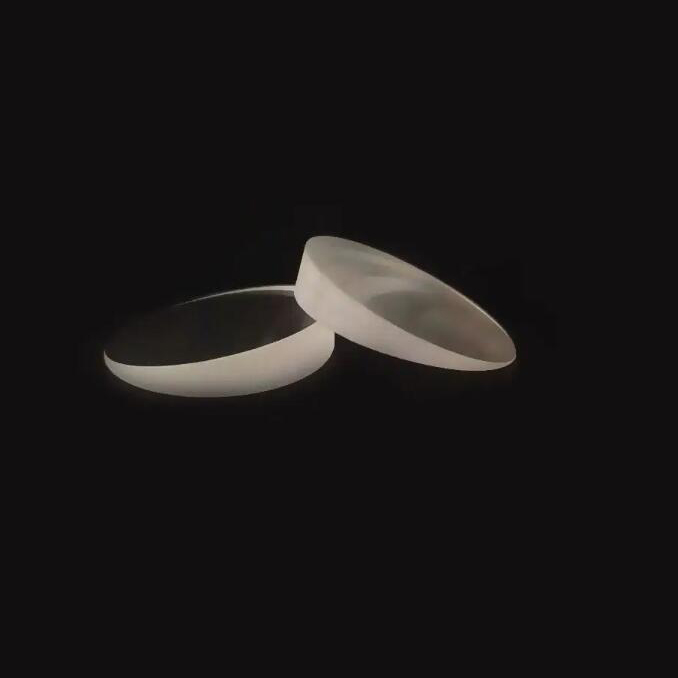

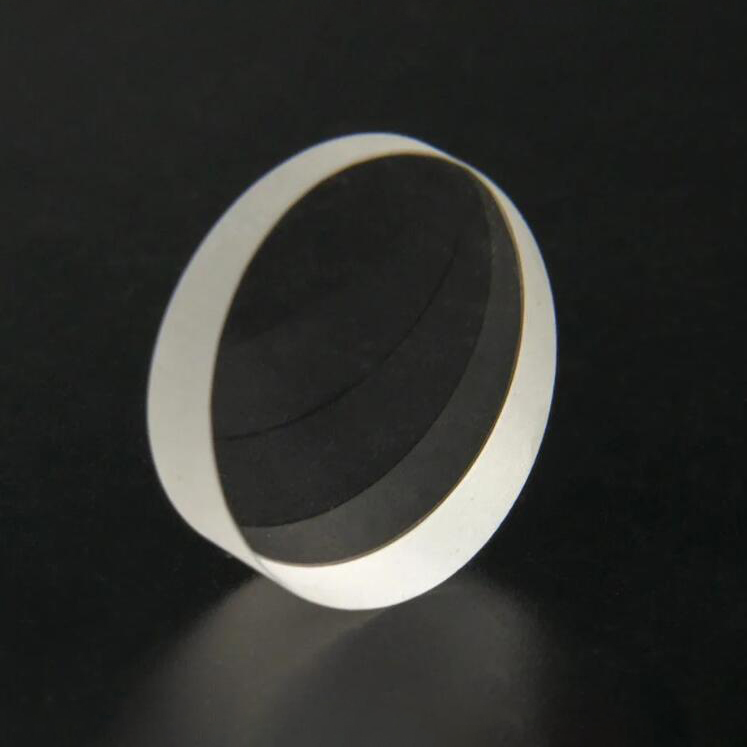

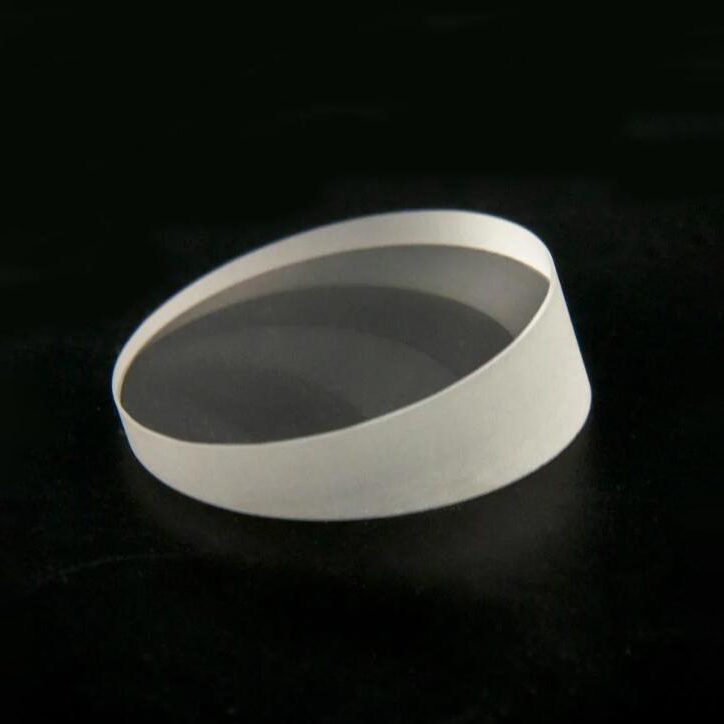

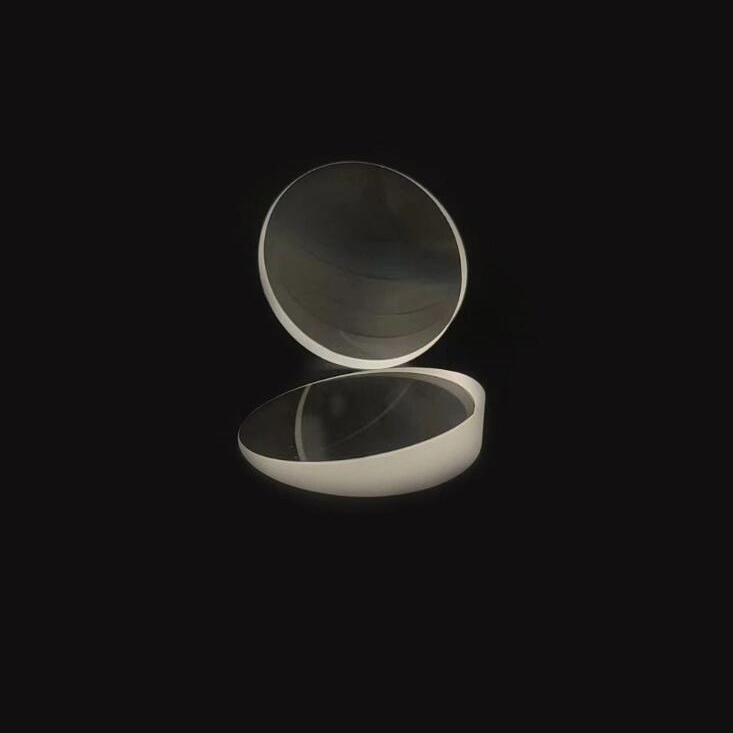

 Sapphire wedge window

 Sapphire wedge window can be used as isolating components. In addition to features similar to normal wedge windows, the sapphire wedge window has a harder, stronger, and more wear-resistant properties

Ricun offers wedged sapphire windows that eliminate fringe patterns and can be used to help avoid cavity feedback. Wedge Windows are useful for protecting a laser output from environmental effects and for beam sampling applications.



 Features

30 arcmin Wedged Windows

Available Uncoated (200 nm - 4.5 µm) or with One of Two Broadband AR Coatings

Ø1" and Ø2" wedge window



Material

Sapphire

Sapphire

Diameter

12.7mm

25.4mm

Diameter tolerance

+0/-0.2mm

+0/-0.2mm

Thickness

3.0mm

5.0mm

Thickness tolerance

+/-0.1mm

+/-0.1mm

Wedge angle

30+/-10 arcmin

30+/-10 arcmin

Clear aperture

≥Ø11.43 mm

≥Ø22.86 mm

Surface accuracy

≤λ/2 Over Central Ø5 mm

≤λ Over Entire Clear Aperture

≤λ/2 Over Central Ø10 mm

≤λ Over Entire Clear Aperture

Surface quality

60/40

60/40

Wavelength range

200 nm - 4.5 µm (Uncoated)

200 nm - 4.5 µm (Uncoated)
