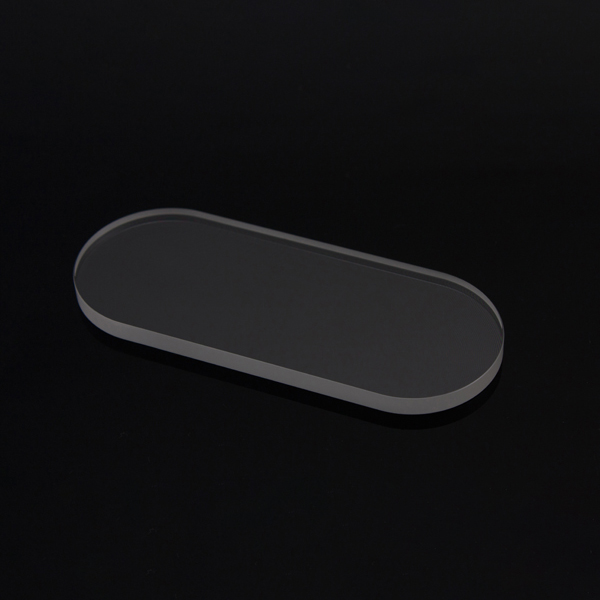

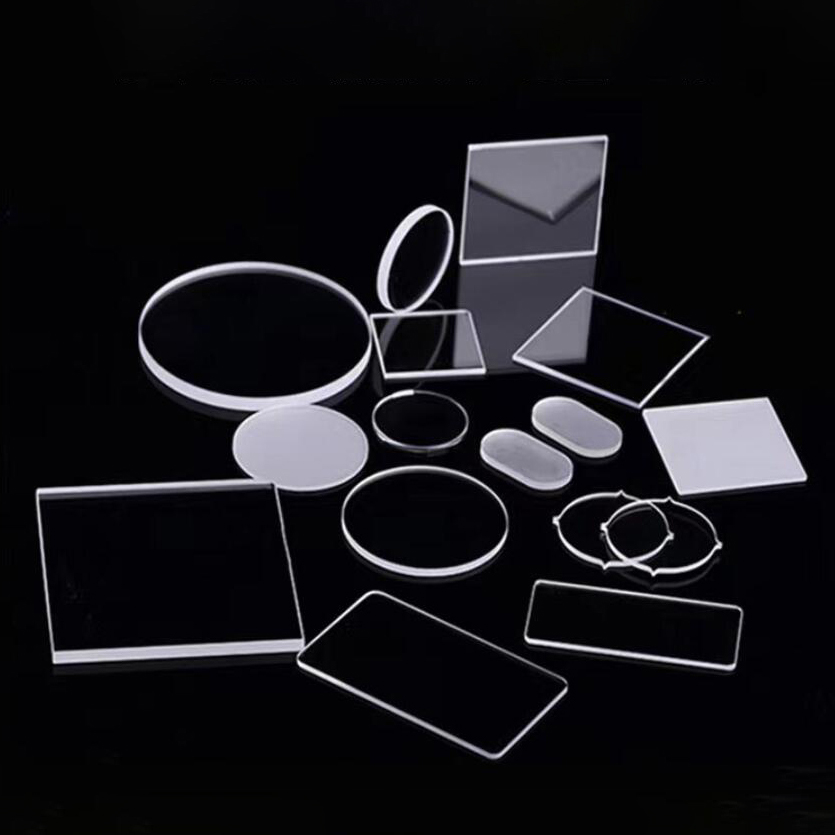

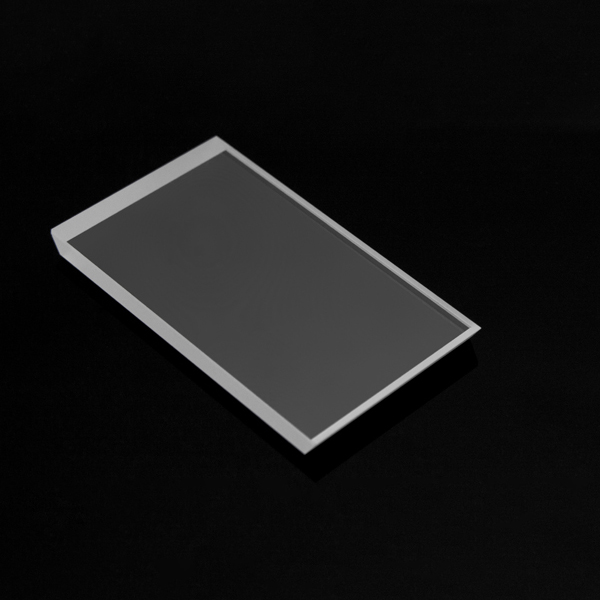

 Sapphire Window

Sapphire windows are used in some non-ornamental applications, including infrared optical components, such as in scientific instruments; high-durability windows and movement bearings;Due to sapphire's remarkable hardness (third hardest mineral, right behind diamond and moissanite).Single Crystal Sapphire also used for various kinds of vacuum equipment, windows in reaction furnaces, scanner windows, and caps for optical communication due to its excellent mechanical characteristics and heat resistance

Features of Sapphire Crystal

1. High-hardness - abrasion resistance
2. Transparency - in the range from ultraviolet to infrared light (0.15 - 5.5 µm)
3. Chemical resistance and heat resistance - resist almost all kinds of acid and alkaline, heat up to 2000 ºC.
4. Suitable for the application of insulation property required.

Sapphire Crystal Property

Crystal structure: Hexagonal
Lattice: a=4.785Å, C=12.991Å
Density: 3.98g/cm3
Transmission Range: 150-5500nm
Melting Point: 2040°C
Specific Heat: 0.418 W.s/g/K
Thermal Conductivity: 25.12 W/m/K
Thermal Shock Resistance: 790 W/m
Thermal Expansion Coefficient: 5.8x10E-6/K
dn/dT: 13x10E-6/K @633nm
Hardness: 9 Mohs
Refractive Index: 1.83 @0.26mm, 1.76 @0.63mm, 1.58 @5.57m

Sapphire Crystal Applications

- UV and IR Optics
- Windows for High Temperature and Pressure, Corrosion Resistance, Abrasion Resistance
- Heat Sink and Thermocouplers; Semiconductor Wafer Carriers
- Electrical Insulators
- Thin Film Deposition
- Transparent Electronic Substrate
- Silicon on Sapphire Wafers; Superconductor Substrate



Sapphire Crystal Window Specifications

Material

Sapphire

Dimension

2-600mm

Dimension tolerance

+/-0.03mm

Thickness tolerance

±0.005mm

Flatness

λ(general),λ/8(high precision)

Parallelism

3 min(General), 10 sec(High precision)

Surface quality

5/10;20/10;40/20,60/40

Clear aperture

>90%

Coating

AR/AF/IR/dielectric film/metal film/laser film


Available dimension at stock



Diameter (mm)

Thickness (mm)



Material



2.50

0.50

Sapphire

5.00

1.00

Sapphire

6.35

0.50

Sapphire

7.50

0.40

Sapphire

9.50

0.50

Sapphire

10.00

1.00

Sapphire

12.70

3.20

Sapphire

12.75

1.00

Sapphire

13.00

0.50

Sapphire

15.00

2.00

Sapphire

17.25

2.00

Sapphire

20.00

2.00

Sapphire

22.00

1.00

Sapphire

23.75

1.00

Sapphire

25.00

2.30

Sapphire

25.40

2.30

Sapphire

30.00

1.00

Sapphire

31.75

1.00

Sapphire

34.00

3.00

Sapphire

35.00

1.00

Sapphire

38.00

1.00

Sapphire

40.00

2.00

Sapphire

50.00

3.00

Sapphire

60.00

5.00

Sapphire

75.00

2.00

Sapphire

100.00

2.00

Sapphire

125.00

2.00

Sapphire

150.00

3.00

Sapphire
