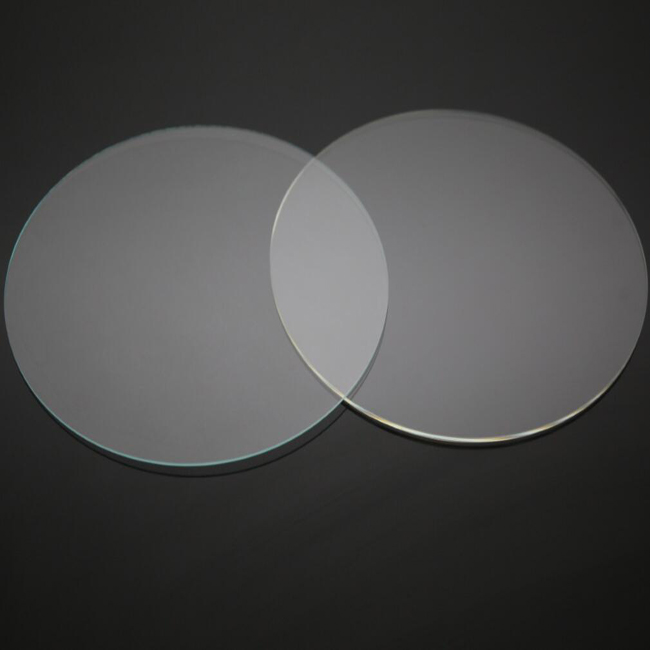

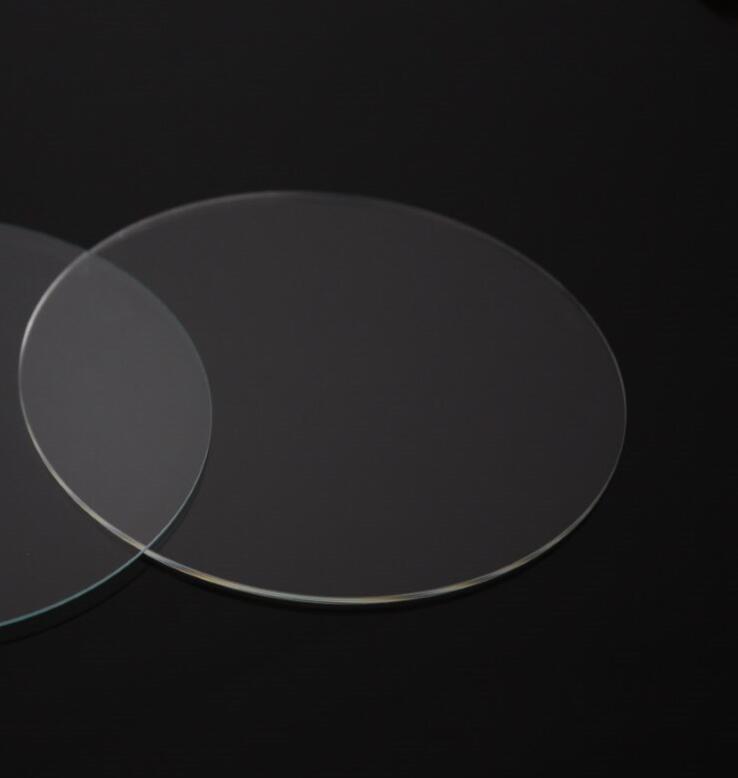

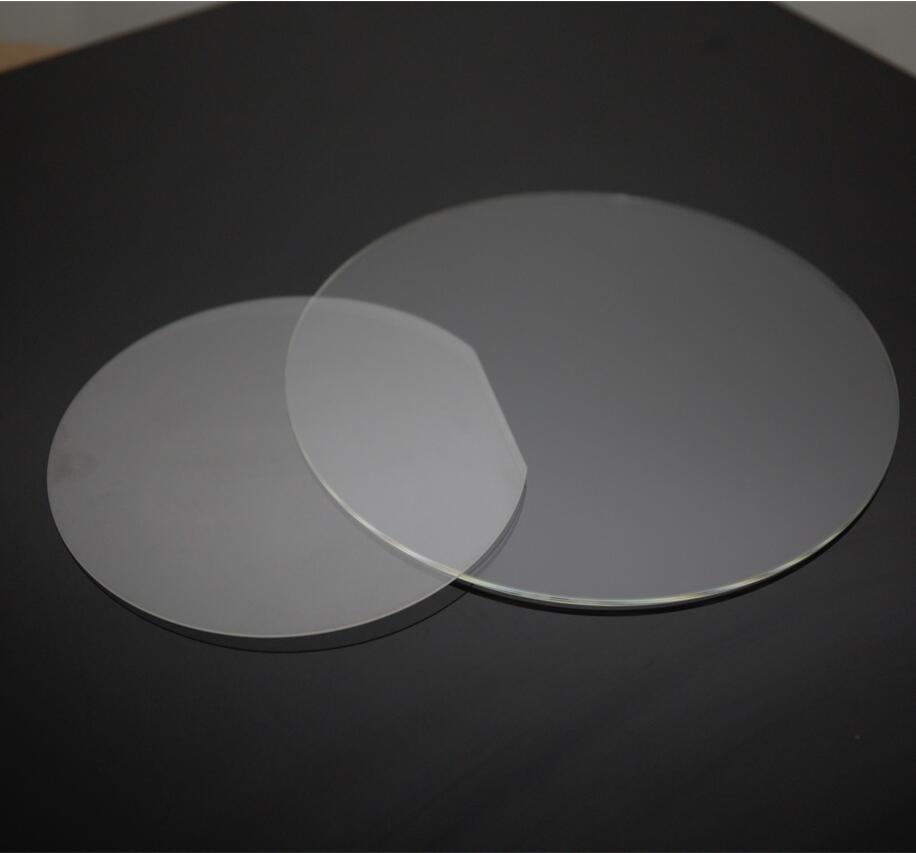

Fused silica wafer

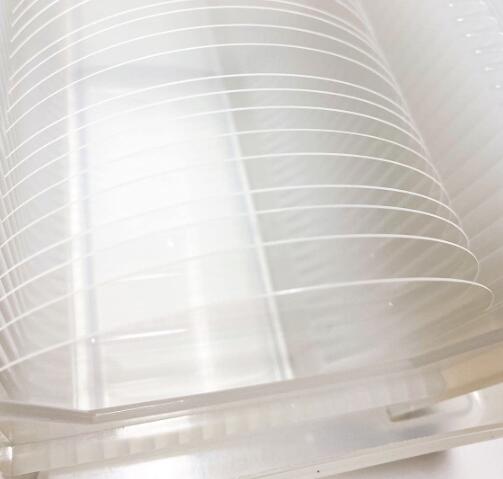

Ricun provides high quality fused silica wafer in UV grade , optical grade and semiconductor grade . Fused silica wafer have many unique features such as high working temperature , high anti corrosion , good thermal conductivity , high optical transmittance and low dielectric loss , these special features make fused silica wafer suitable for semiconductor , photomask , microwave filter , optical lens , and optical fiber application . Quartz wafer can be fabricated in round or square shape , with a SEMI flat or without flat , one side polished or two sides polished , size from 1" to 8 " , thickness range from 0.4 , 0.5 , 0.7 , 1.1 to 3 mm , ultrasonic cleaning and cleanroom compatible wafer cassette package are also available. Additionally , we offer custom specifications designed to your unique needs including , dimension , SEMI. standard flats , surface roughness , edge profile , thickness , flatness , surface quality , cleanliness package method . We have amorphous quartz wafer in stock and can machine to your specification with high precision surface finish . Please contact us for further product information .



Technical parameters of 4 inch fused silica wafer



Property

Specification

Diameter

100 ± 0.2mm

Thickness

0.4(0.5)(1.0)(1.5) ± 0.02mm

O.F Length

Optional upon your request

Roughness

Ra<1.0nm

TTV

≤ 5 microns

Edge Form

Edge Grinding

Bow and Warp

≤ 10 microns

Strain Point

1,015℃

Annealing Point

1,015℃

OH Content

< 200 ppm

Material

Fused silica

Refractive Index (@632.8nm)

1.457

Remarks

All specifications above can be customized upon your request



Technical parameters of 6 inch fused silica wafer

Property

Specification

Diameter

150 ± 0.2mm

Thickness

0.4(0.5)(0.7)(1.0)(1.5) ± 0.02mm

O.F Length

Optional upon your request

Roughness

Ra<1.0nm

TTV

≤ 10 microns

Edge Form

Edge Grinding

Bow and Warp

≤ 10 microns

Strain Point

1,015℃

Annealing Point

1,015℃

OH Content

< 200 ppm

Material

Fused silica

Refractive Index (@632.8nm)

1.457

Remarks

All specifications above can be customized upon your request


Technical parameters of 8 inch fused silica wafer

Property

Specification

Diameter

200 ± 0.2mm

Thickness

0.4(0.5)(0.7)(1.0)(1.3)(1.5)(2.8)(3.0) ± 0.02mm

O.F Length

Optional upon your request

Roughness

Ra<1.0nm

TTV

≤ 10 microns

Edge Form

Edge Grinding

Bow and Warp

≤ 10 microns

Strain Point

1,015℃

Annealing Point

1,015℃

OH Content

< 200 ppm

Material

Fused silica

Refractive Index (@632.8nm)

1.457

Remarks

All specifications above can be customized upon your request
