Wafers&Substrates

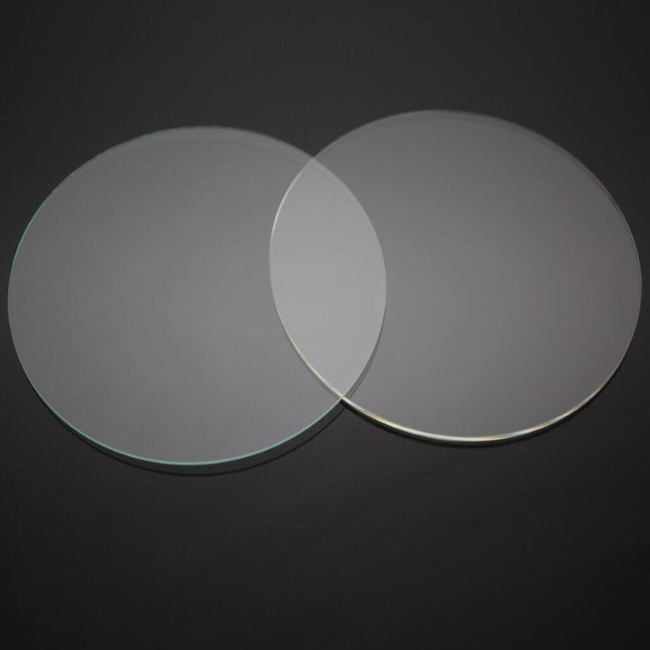

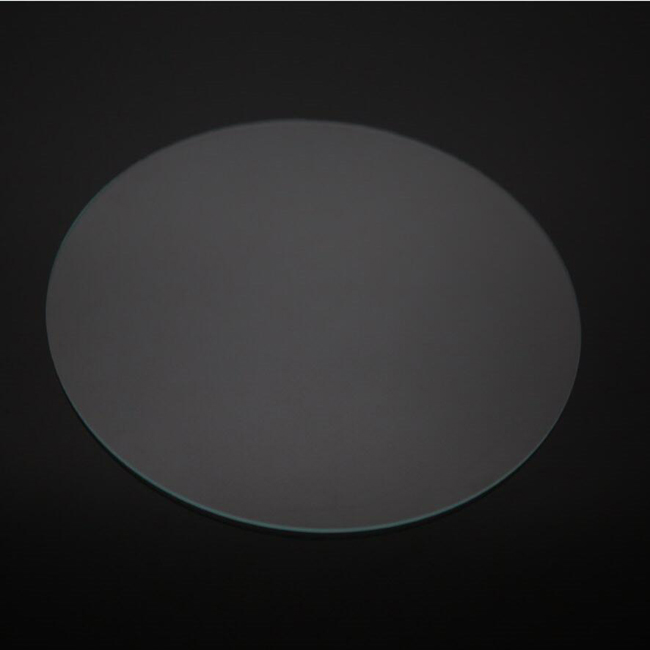

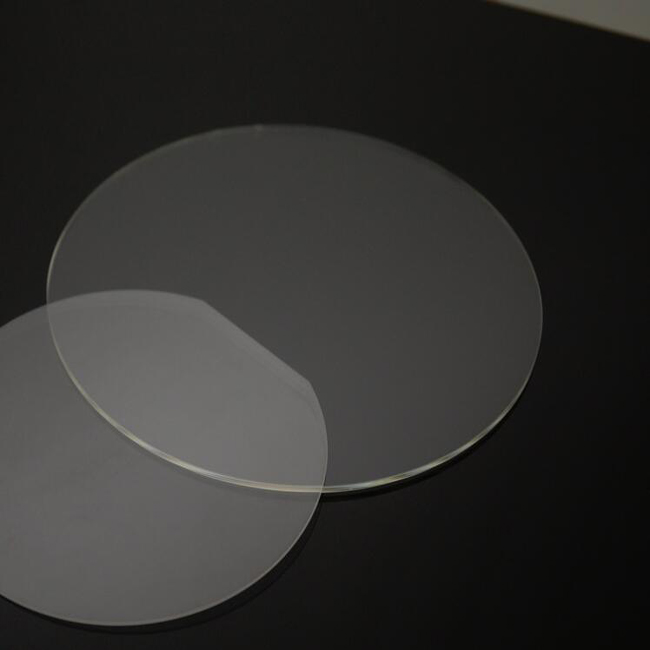

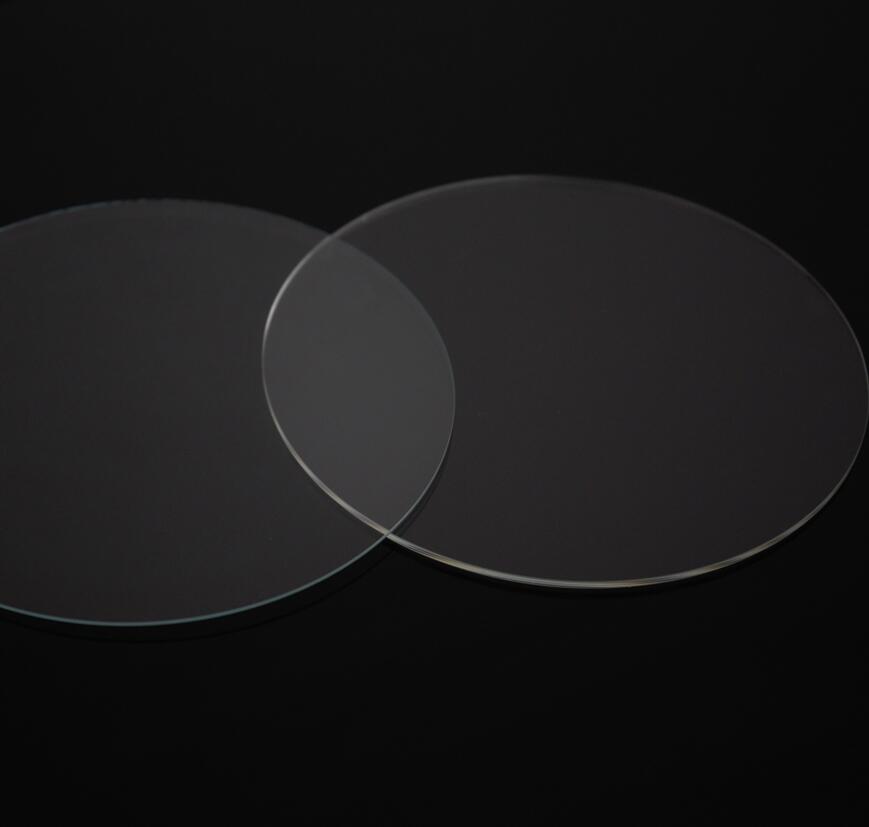

Ricun has years of exprience of producing wafers&substrate that serving the imaging, sensing, semiconductor, medical and biotechnology industries. And we can provides a variety of wafers and substrates including Fused Silica , Quartz wafer , Borofloat , Pyrex 7740 , Soda Lime Glass , BK7, B270¸ Eagle XG , Corning 1737, D263T and other glass materials such as ITO conductive glass wafer and single crystal quartz wafer ( synthetic quartz wafer ) . Glass wafer can be fabricated in round or square shape , with a SEMI flat or without flat , one side polished or two sides polished , size from 1" to 12 " , thickness range from0.15, 0.4 , 0.5 , 0.7 , 1.1 to 3 mm , ultrasonic cleaning and cleanroom compatible wafer cassette package are also available. In addition , we offer custom specifications designed to your unique needs including , dimension , SEMI. Standard flats , surface roughness , edge profile , thickness , flatness , surface quality , cleanliness package method . We have various glass substrates in stock and can machine to your specification with high precision surface finish .
Based on customer's demand, Ricun optical offers glass wafers made from the following materials. If you don’t see a material you need, please contact us, we are pleased to discuss additional options for you.
D26T、BF33、N-BK7、B270
Eagle XG 、Corning 1737
Pyrex 7740 、Soda Lime Glass
Fused silica, Quartz、Sapphire ,LiNbO3、LiTaO3
Technical parameters of wafers& substrates
Materials
|
Glass、Fused silica、Sapphire、Quartz、silicon、LiNbO3、LiTaO3.
|
Diameter
|
Ø 1" / Ø 2" / Ø 3" / Ø 4"/ Ø 6" / Ø 8"/ Ø 12"
|
Thickness
|
0.15mm/0.3mm/0.4 mm / 0.5 mm /0.65mm/ 0.75 mm / 1.1 mm /1.3mm or customized
|
Surface
|
two sides polished & single side polished
|
Flat
|
SEMI.Std. flat or Notch
|
TTV
|
<= 5 um
|
Roughness
|
Ra <=10 A
|
Edge form
|
45°,C Shape
|
Package
|
cassette / jar
|
