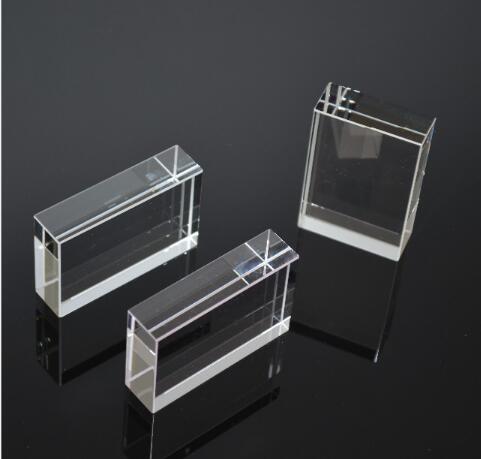

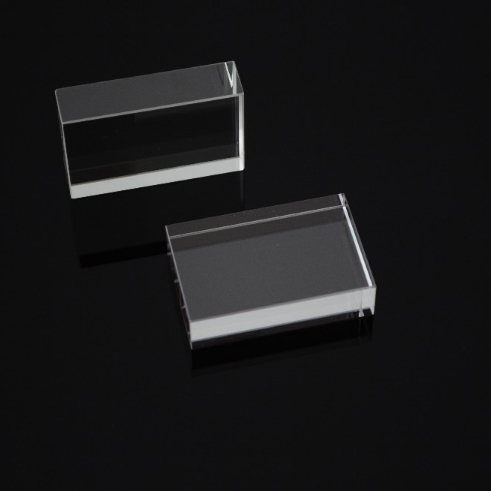

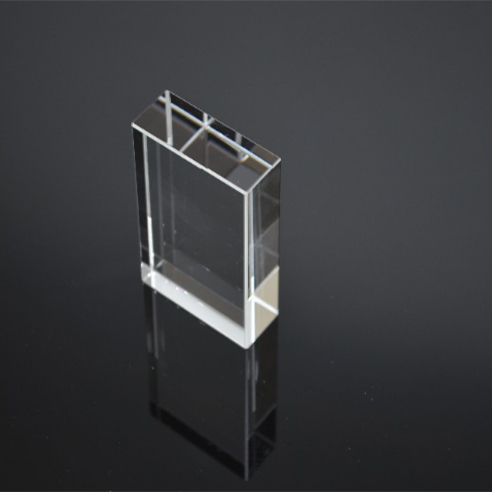

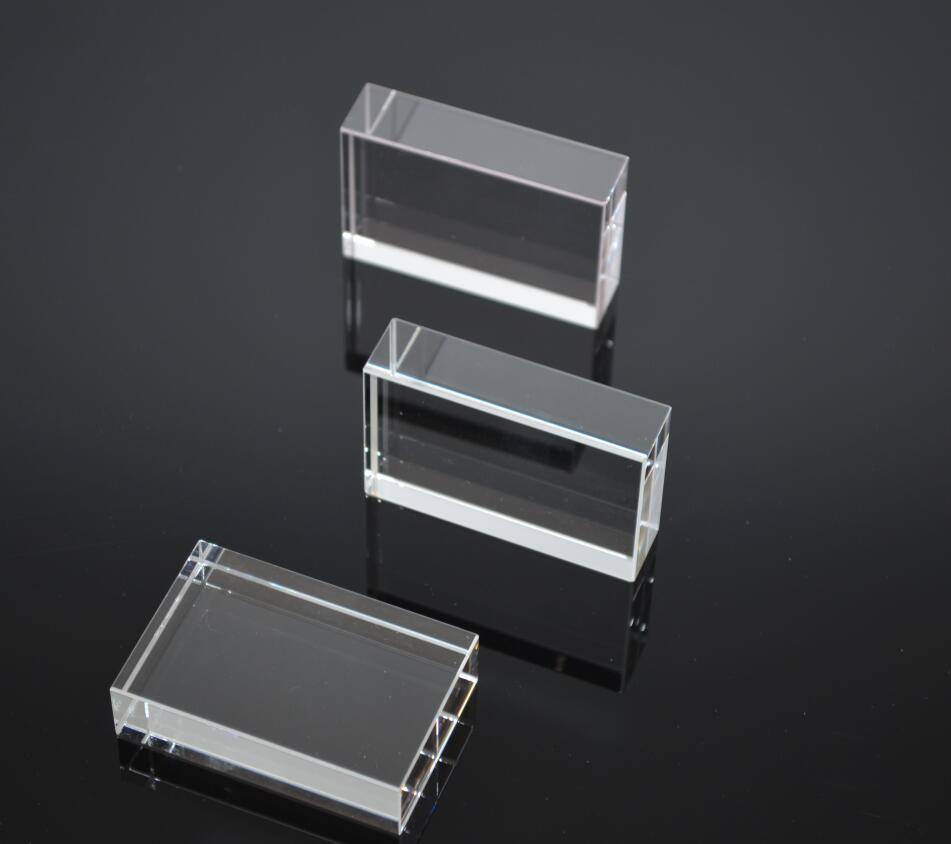

 Sapphire light guide

 Sapphire light guides is the key optical element for IPL (Intense Pulsed Light) machine, which filters the UV wave and reserve the useful wave from 400nm to  1200nm for cosmetic laser, such as hair removal,vascular and acne treatment.

Available wavelength:     515  to  1200nm,     530  to  1200nm,      550  to 1200nm,  560 to 1200nm, 570 to 1200nm,     590 to 1200nm,     615 to 1200nm,    645 to 1200nm,     695 to 1200nm, 755 to 1200nm,       780 to 1200 nm.

We  Ricun can provide all kinds of Sapphire light guide. Sapphire is an extremely hard material, which offers increased durability and resistance to damage. Sapphire also provides excellent transmission over the entire visible and SWIR range.

All of these sapphire light guide are made of laser-grade synthetic sapphire monocrystals.

Technical Parameters of sapphire light guide



Size

10*15*45mm,10*12*15mm,12*20*28mm,15*16*46, and customized size

Tolerance

+/-0.1mm, customize available

Surface Quality

40/20 or 20/10

Flatness

1/4 l ambda per inch @633nm, 1/8 l ambda per inch @633nm

Parallelism

30 arc sec to 3 arc min

Chamfer

fine ground, customize available

Coating

+/-0.1mm, customize available

Material

synthetic sapphire
