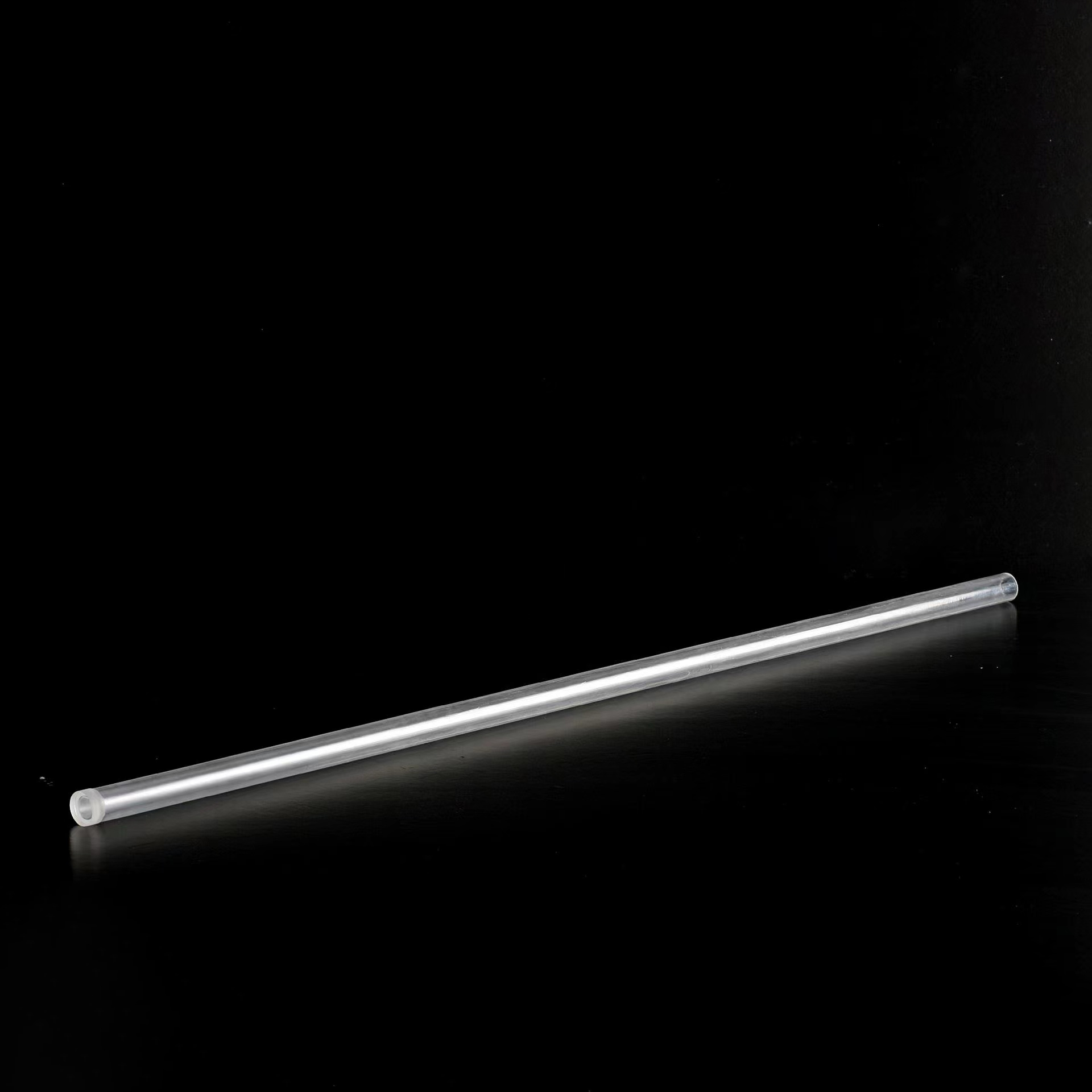

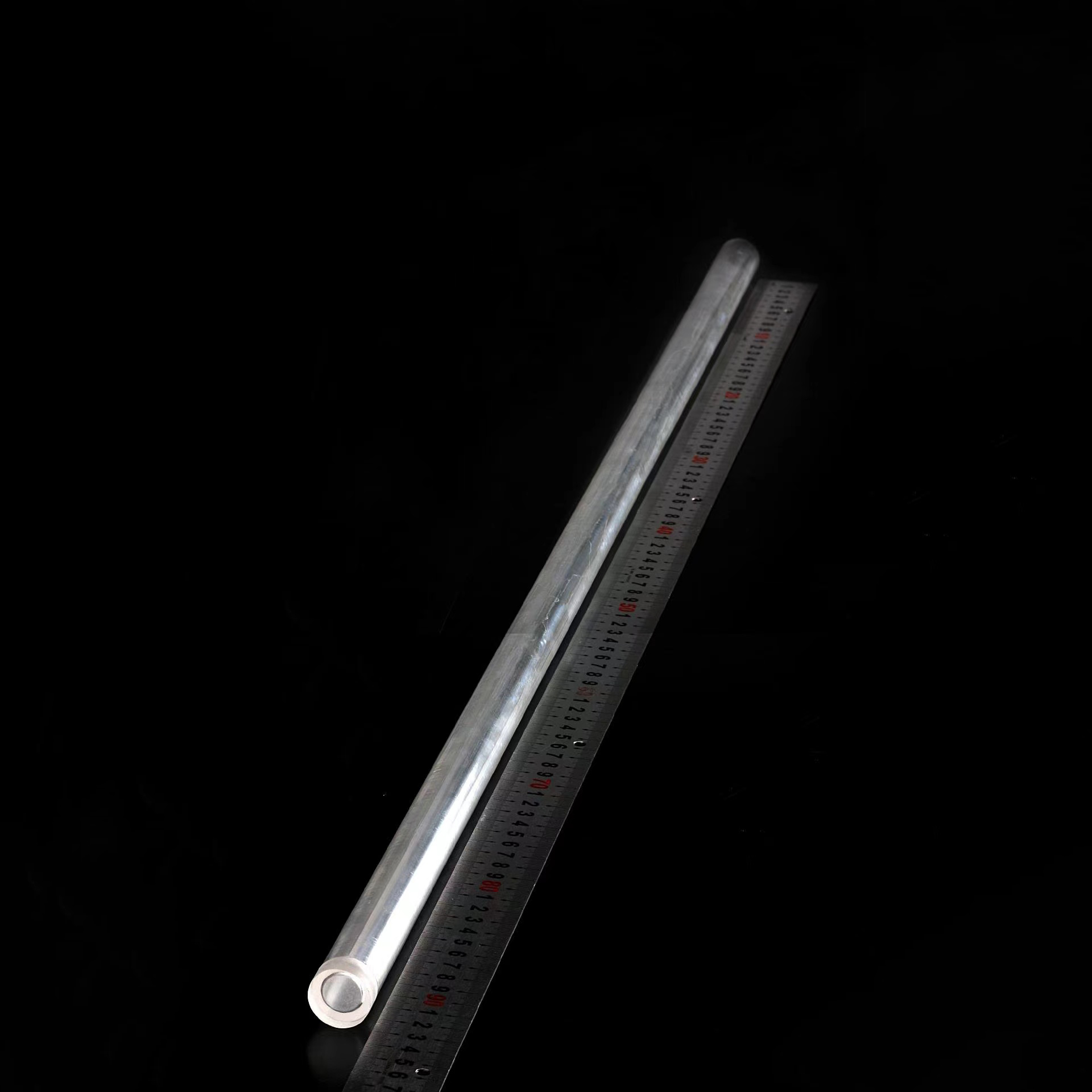

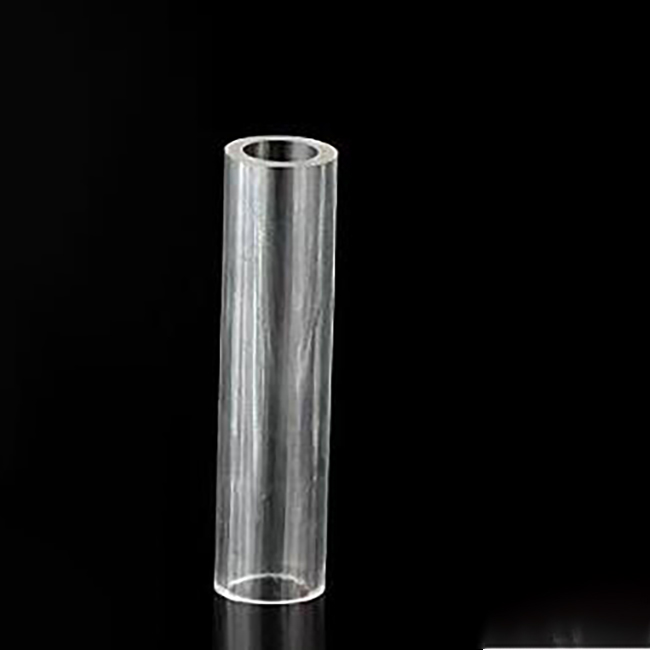

 Ricun offers a full range of Sapphire tubes to meet a wide variety of demanding applications.Our Sapphire tubes are used as a superior alternative to quartz, alumina, and silicon carbide in semiconductor processing applications.  In addition, our Sapphire tubes are used in various analytical instruments in lamp applications that transmit visible, infrared or ultraviolet light, often with high intensity at high temperatures and pressures.



Uses/Applications

Semiconductor Processing

· Plasma containment tubes

· Process gas injectors

· Thermocouple protection (Thermowell)

· Water treatment / cleaning

· End point detector

Test and Analytical

· Nuclear Magnetic Resonance spectroscopy (NMR)

· Thermo-optic temperature measurement

· Inline petroleum processing analysis

· Mass spectroscopy

· Biological and chemical sample analysis

· Plugged tubes

· Test tubes

Lamps and Lamp Envelopes

· Electronic Infra-Red countermeasures

· Ultraviolet sterilization

· Flashlamps

· High intensity lamps

Features/Benefits

· Single (Al2O3) crystal, highest purity possible, no grain boundaries

· Minimal to no particle contamination

· High melting point, 2053oC

· Hardness next to diamond on Mohs Scale of Hardness: extremely scratch-resistant

· Chemically inert (non-reactive in most process environments)

· Superior rigidity (435 Gpa, 6x stiffer than quartz)

· Transparent - transmits UV - visible - IR wavelengths

· Radiolucent

· Can be made in complex shapes




Product name

Sapphire Tube

Diameter

0.5-500mm

Tolerance

+0/-0.05mm

Thickness

Customization

Length

Customization

Clear Aperture

>90%

Surface quality

60/40

Application

Research and Semiconductor

Usage

UV and IR lamp

Packing

Carton or as per customer's requirements
